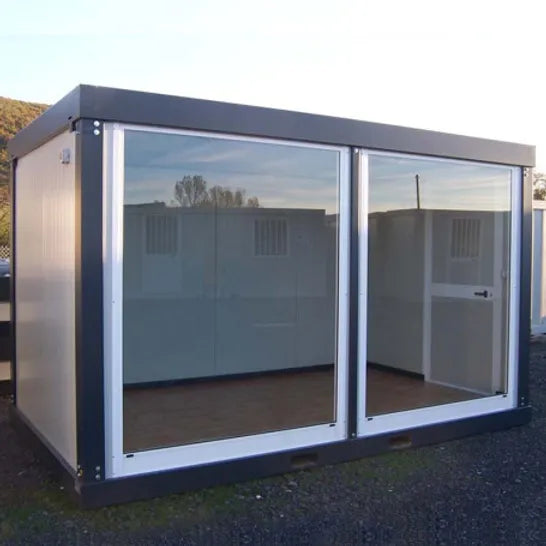

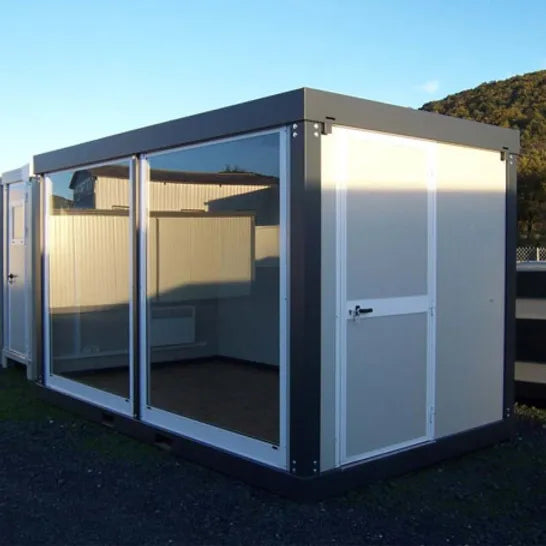

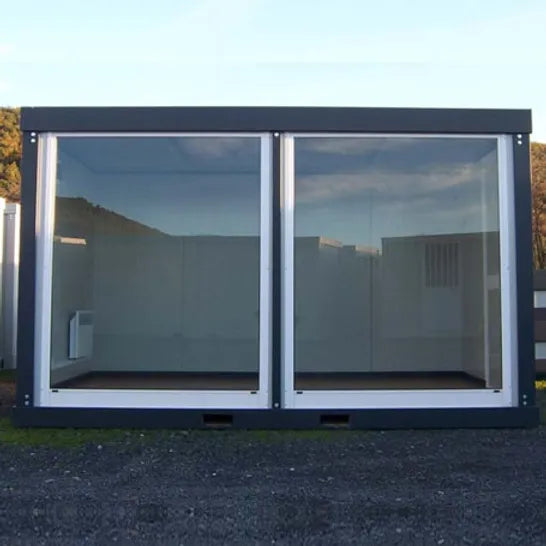

**New Sales Bubble Bungalow V1 (4 meters)**
The Sales Bubble Bungalow provides an elegant and comfortable office or sales office at an unbeatable price and within an incomparable timeframe compared to traditional construction methods. We have standardized four sales bubbles of various sizes and option levels.
Our 4-meter Sales Bubble V1 is offered as a standard in our "Reinforced" series.
The "Reinforced" series bungalows boast a fortified structure, along with enhanced thermal and acoustic insulation (thicker insulation and double glazing). These features offer superior comfort compared to the standard series, making them more suitable for office use.
For those desiring this module with the most reinforced structure in our range or the highest thermal and acoustic insulation efficiency, a quote can be requested for this bungalow in our "Isoplus" series.
The "Sales Bubble V1" bungalow requires a manufacturing and delivery period of 8 weeks. For a faster delivery with a similar configuration, one should opt for our "6-meter Sales Bubble V2" bungalow (available only in 6 meters).
Our bungalows are assembled in France.
**Exterior dimensions of a 4-meter Sales Bubble V1 Reinforced Series:**
- **Length:** 409 cm
- **Width:** 242 cm
- **Height:** 252 cm
- **Usable Interior Surface Area:** 8.8 m²
**Frame:**
- **Material:** Galvanized and painted steel
- **Color:** Anthracite gray RAL 7016
- **Thickness:** 2 mm
- **Base:** Height 160 mm
- **Roof:** Height 200 mm
- **Handling:** 4 lifting hook points on the roof and forklift pockets in the base for manipulation with a forklift
**Walls and Roof:**
- **Material:** Sandwich panels
- **Insulation:** Rigid polyurethane foam
- **Wall thickness:** 50 mm
- **Roof thickness:** 40 mm
- **Roof cover:** Corrugated galvanized steel
- **Wall color:** Light gray RAL 9002
**Floor:**
- **Structure:** Waterproof chipboard panels
- **Thickness:** 18 mm
- **Covering:** PVC parquet imitation with black skirting
**Joinery:**
- **Material:** White painted aluminum RAL 9010
- **Door(s):** 1 solid entrance door, dimensions 104 x 220 cm (90 cm passage)
- **Window(s):** 2 fixed bay windows, dimensions 174 x 220 cm, laminated safety glass, thickness 4+4 mm

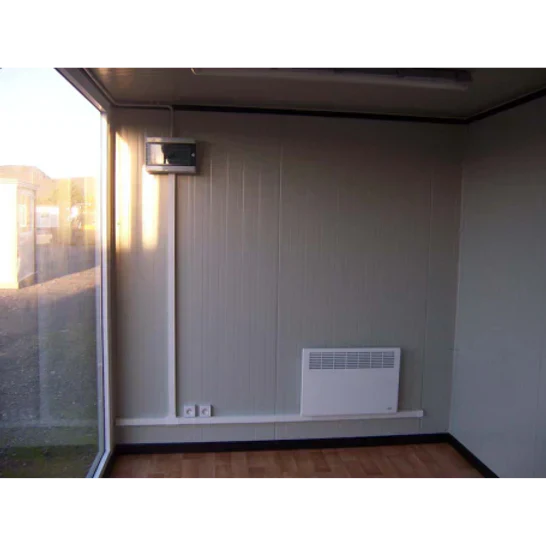

**Electricity:**
- **Lighting:** 1 LED neon
- **Outlets:** 2 power outlets
- **Heating:** 1 1500 W convector
- **Panel:** 1 panel including differential switch and circuit breakers
- **Connection:** 1 external connection box
**Optional features:**
- Free color choices for the frame: white RAL 9010, light gray RAL 9002, or anthracite gray RAL 7016
- Other colors available as an option for the panels, frame, or joinery
- Underfloor insulation with 50 mm thick glass wool on galvanized steel protection sheets
- Ceiling height of 2.40 m, door height remains 2.20 m
- Base on skids (2 I-beams, 16 cm)
- Integrated WC area with toilet, washbasin, door, and partitions (hot water option for washbasin)
- Integrated shower area (with hot water), door, and partitions
- 4 rainwater downspouts
- Joinery in anthracite gray painted aluminum RAL 7016
- 2300 W reversible air conditioner UNICO R10
- 12000 BTU Window air conditioner (cooling only)
- SHINY 12 reversible mobile air conditioner R290 3.5 KW with window kit
- LED panels instead of neon lights
- Additional semi-glazed door, solid door, or fully glazed door
- Additional window, bay window, snack window, or window with counter and intercom
- Aluminum or PVC roller shutters, specific colors available
- Wood-cement floor, 16 mm thick instead of chipboard (essential if the bungalow is not elevated by a few cm with pads or wedges, and for humid environments) with a load capacity of 400 kg/m²
- Phenolic plywood floor, 18 mm thick instead of chipboard, with a load capacity of 500 kg/m²
- High-traffic PVC flooring instead of PVC parquet imitation or tiled floor
- Smooth panels, food-grade panels, rock wool panels, or fire-resistant panels
- Additional power outlets or RJ45 outlets
**Possibilities for adding a kitchenette:**
- Sink on 80x60 cm unit, 1 cold-water basin
- Sink on 80x60 cm unit, 1 basin with hot water
- Sink on unit with hot water, 2 cooking plates, and refrigerator
