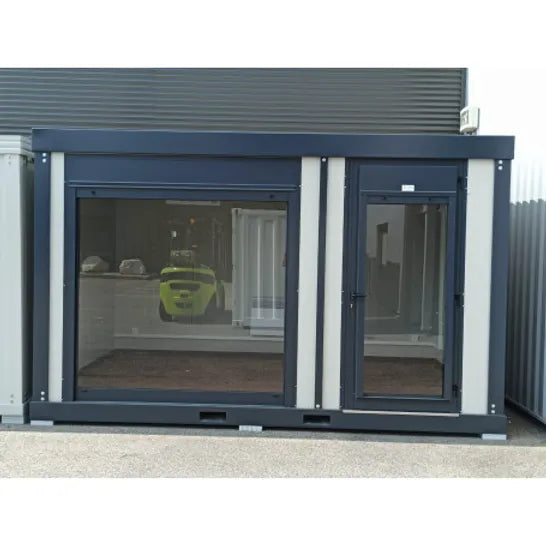

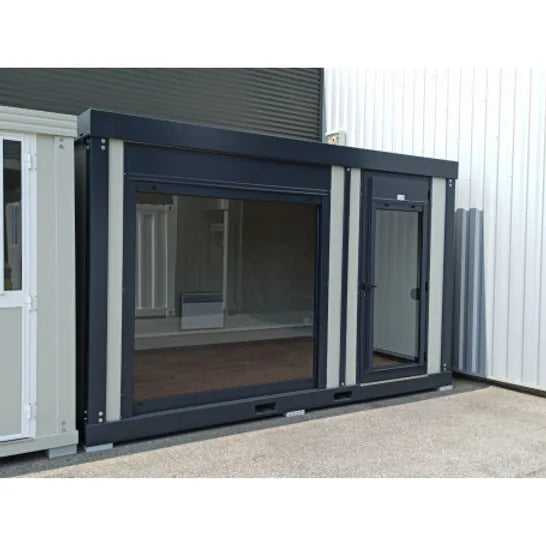

New Sales Bubble Bungalow V2 (4 meters)
The Sales Bubble Bungalow offers a comfortable and aesthetically pleasing office or sales office at an unbeatable price and within an incomparable timeframe compared to traditional construction solutions. We have standardized four sales bubbles of different sizes and levels of options.
Our 4-meter Sales Bubble V2 is offered as standard in our "Reinforced" series.
The "Reinforced" series bungalows feature a reinforced structure, as well as enhanced thermal and acoustic insulation (thicker insulation and double glazing). They provide superior comfort compared to the standard series and are therefore more suitable for office use.
The Sales Bubble V2 includes several additional options compared to the V1: Aluminum joinery in Anthracite Gray RAL 7016, a fully glazed entrance door, and underfloor insulation.
If you desire this module with the most reinforced structure in our range or the most efficient thermal and acoustic insulation, you can request a quote for this bungalow in our "Isoplus" series.
Our "Sales Bubble V2" bungalow requires a manufacturing and delivery time of 8 weeks. For a faster delivery with a similar configuration, you should opt for our "6-meter Sales Bubble V2" bungalow (available only in 6 meters).
Our bungalows are assembled in France.
**Exterior dimensions of a 4-meter Sales Bubble V2 Reinforced Series:**
- **Length:** 409 cm
- **Width:** 242 cm
- **Height:** 252 cm
- **Usable Interior Surface Area:** 8.8 m²
**Frame:**
- **Material:** Galvanized and painted steel
- **Color:** Anthracite gray RAL 7016
- **Thickness:** 2 mm
- **Roof:** Height 200 mm
- **Base:** Height 160 mm
**Walls and Roof:**
- **Material:** Sandwich panels
- **Insulation:** Rigid polyurethane foam
- **Wall thickness:** 50 mm
- **Roof thickness:** 40 mm
- **Roof cover:** Corrugated galvanized steel
- **Wall color:** Light gray RAL 9002

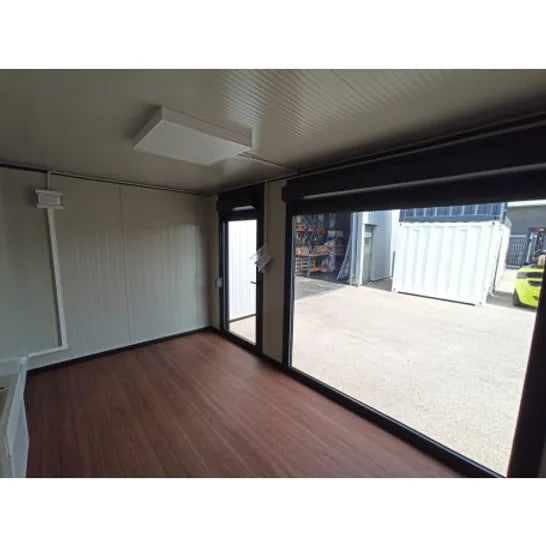

**Floor:**
- **Structure:** Waterproof chipboard panels
- **Thickness:** 18 mm
- **Covering:** PVC parquet imitation with black skirting
- **Insulation:** Underfloor insulation with 50 mm thick glass wool on protection sheets
**Joinery:**
- **Material:** Aluminum painted anthracite gray RAL 7016
- **Door(s):** 1 fully glazed entrance door, dimensions 104 x 220 cm (90 cm passage), laminated safety glass, thickness 4+4 mm.
- **Window(s):** 1 fixed bay window, dimensions 204 x 220 cm, laminated safety glass, thickness 4+4 mm, and 1 fixed bay window, dimensions 184 x 220 cm, laminated safety glass, thickness 4+4 mm
- **Shutter(s):** Roller shutters on the door and bay window in aluminum, anthracite gray RAL 7016
**Electricity:**
- **Lighting:** 1 LED neon + 1 switch near the door
- **Outlets:** 2 power outlets

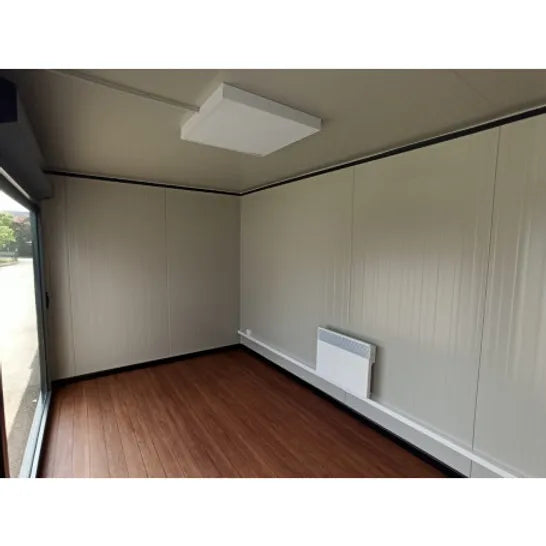

- **Heating:** 1 1500 W convector
- **Panel:** 1 panel including differential switch and circuit breakers (6 kW maximum)
- **Connection:** 1 external connection box
**Optional features:**
- Free color choices for the frame: white RAL 9010, light gray RAL 9002, or anthracite gray RAL 7016
- Other colors available as an option for the panels, frame, or joinery
- Ceiling height of 2.40 m, door height remains 2.20 m
- Base on skids (2 I-beams, 16 cm)
- Integrated WC area with toilet, washbasin, door, and partitions (hot water option for washbasin)
- Integrated shower area (with hot water), door, and partitions
- 4 rainwater downspouts
- 2300 W reversible air conditioner UNICO R10
- 12000 BTU Window air conditioner (cooling only)
- SHINY 12 reversible mobile air conditioner R290 3.5 KW with window kit
- LED panel instead of neon light
- Additional semi-glazed door, solid door, or fully glazed door
- Additional window, bay window, snack window, or window with counter and intercom
- Aluminum or PVC roller shutters, specific colors available
- Wood-cement floor, 16 mm thick instead of chipboard (essential if the bungalow is not elevated by a few cm with pads or wedges, and for humid environments) with a load capacity of 400 kg/m²
- Phenolic plywood floor, 18 mm thick instead of chipboard, with a load capacity of 500 kg/m²
- High-traffic PVC flooring instead of PVC parquet imitation or tiled floor
- Smooth panels, food-grade panels, rock wool panels, or fire-resistant panels
- Additional power outlets or RJ45 outlets
**Possibilities for adding a kitchenette:**
- Sink on 80x60 cm unit, 1 cold-water basin
- Sink on 80x60 cm unit, 1 basin with hot water
- Sink on unit with hot water, 2 cooking plates, and refrigerator
