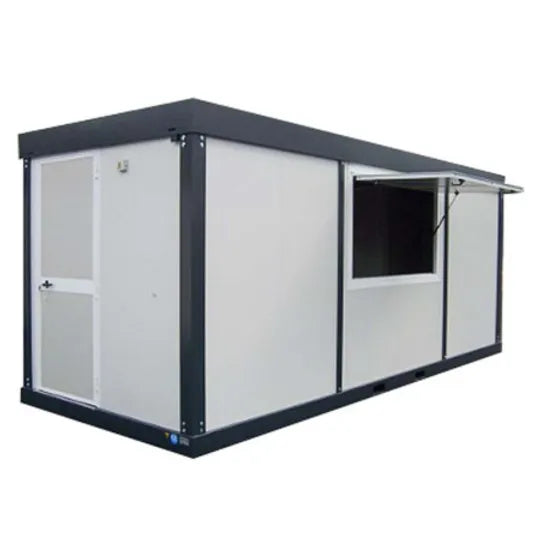

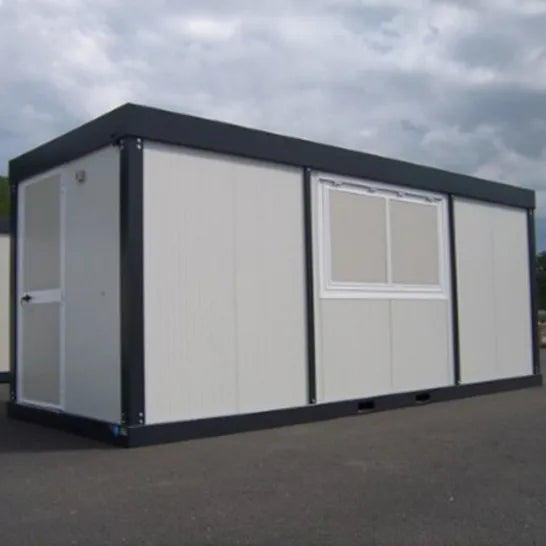

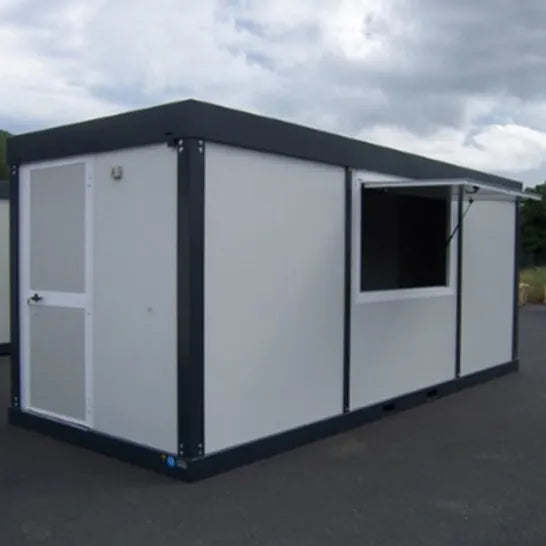

New snack bungalow reinforced by 6 meters
**Product presentation:**
Our 6 meter snack bungalow is specially designed to accommodate snacking activities, providing a versatile module that can be installed permanently or moved frequently. This module is customizable with doors, windows and fork slots for handling with a 250 cm forklift. Additionally, it can be equipped to meet food safety standards.
**Features:**
**Structure :**
- Frame: Anthracite gray galvanized steel RAL 7016
- Roof profile: Anthracite gray galvanized steel RAL 7016, thickness 1.5 mm, height 150 mm, with 4 lifting points for movement by crane
- Base profile: Anthracite gray galvanized steel RAL 7016, thickness 1.5 mm, height 95 mm
- Roof: Sandwich panels with rigid polyurethane foam, thickness 30 mm, Euroclass Cs3d0
- Walls: Sandwich panels with rigid polyurethane foam, thickness 40 mm, light gray RAL 9002, Euroclass Cs3d0
- Floor: 16 mm thick cemented wood, without covering, load capacity of 400 kg/m²
**Dimensions:**
- Exterior height: 241 cm
- Interior height: 220 cm
- Width: 242 cm
- Length: 609 cm
**Carpentry:**
- Material: White painted aluminum RAL 9010
- Door: Solid door, 104 x 220 cm (90 cm passage), 3-point lock
- Window: Snack window without glazing, 204 x 120 cm, with gas spring hatch and interior lock
**Electrical Installation :**
The bungalow is delivered without electrical installation to allow customers to configure it according to their specific needs. However, standard electrical installation (switches, LED neon lights, sockets, convector, control panel and junction box) can be provided if necessary.
**Delivery time :**
The delivery time for this module is 8 weeks maximum from the order date. This deadline includes manufacturing, assembly, transport and organization of delivery. Note that changes or options added to the configuration do not extend the delivery time.
**Terms of delivery :**
The bungalow is delivered assembled and ready for use. Prices are ex-works and additional transport costs apply. We offer two transport solutions:
1. Truck with crane for unloading on site.
2. Transport by low loader without unloading.
The delivery location must be accessible by semi-trailer. For difficult access, we provide you with a more robust transport vehicle equipped with a crane. Installation on bases (concrete or plastic) is recommended. We offer an optional plastic support kit for heavy loads, including glides of different sizes for height adjustment and perfect leveling.
**Additional options**:
- Reinforced thermal and acoustic insulation (Reffortée or Isoplus series)
- Different door and window configurations
- Custom frame and panel colors
- Underfloor insulation
- Reinforced base with slots for forks
- Reversible climate control
- LED panels
- Aluminum or PVC roller shutters
- Different floor coverings (PVC, parquet, tiles)
- Smooth, food-safe, rock wool or fire-retardant panels
- Removal of bars on joinery
**Assembly :**
Our bungalows are assembled in France, guaranteeing optimal quality and reliability.
For any specific requests or configurations, please contact us.
