Product details: Sanitary Block S1 Standard New
Our sanitary blocks offer an ideal solution for the installation of sanitary facilities on construction sites, in warehouses, restaurants, campsites, or even in public spaces. They are aimed at all entities requiring rapid sanitation facilities: communities, businesses, associations. The modular sanitary block allows for very quick and economical installation compared to traditional construction methods.
Characteristics of the S1 Sanitary Block

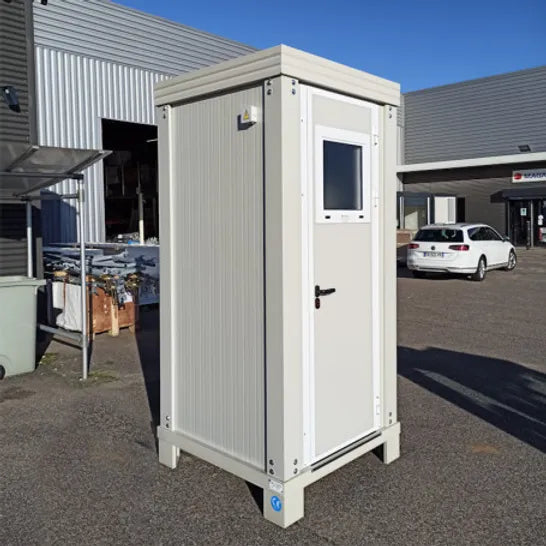

The S1 sanitary block is a module equipped with a WC with hand basin, including a skylight on the door. It has four legs 16 cm high at the base. This module is available from stock, with a maximum delivery time of three weeks from the order.
Additional configurations
- SS1 sanitary block: two toilets
- Sanitary block SD1: a toilet and a shower
The standard series offers a basic finish with standard structure and insulation. More advanced options are available in our “Reinforced” and “Isoplus” series, offering better thermal and sound insulation, but with longer delivery times.
Our toilet blocks are assembled in France.
Detailed description of the New S1 Sanitary Block
Frame: Galvanized and lacquered light gray RAL 9002 steel.
Roof profile: Light gray lacquered galvanized steel RAL 9002, thickness 1.5 mm, height 154 mm, with 4 slinging points for movement by crane.
Base: Galvanized steel lacquered light gray RAL 9002, thickness 1.5 mm, height 80 mm, with 4 legs of 16 cm.
Roof: Rigid polyurethane foam sandwich panels, thickness 30 mm, Euroclass Cs3d0. Corrugated galvanized steel roofing, with rainwater drainage at the rear.
Walls: Rigid polyurethane foam sandwich panels, thickness 40 mm, light gray color RAL 9002, Euroclass Cs3d0.
Floor: 18 mm thick water-repellent chipboard, covered with a PVC coating.
Joinery: White lacquered aluminum RAL 9010.
Sanitary: Ceramic WC with PVC tank and paper holder, PVC hand basin with tap and mirror.
Electricity: 220 V installation with switch, LED ceiling light, electrical panel including inter-differential and circuit breakers (6 KW maximum), and external connection box.
Dimensions
Exterior height: 256 cm
Interior height: 220 cm
Width: 118 cm
Depth: 118 cm
Options available
Hot water in the sink
Electric fan convector
Flooring in wood-cement panels with PVC coating
Double glazing
Heavy-duty PVC floor covering, imitation parquet or tiles
Smooth, food-safe, fire-rated or rock wool panels
Outlets
Air extractor 90m³/h with switch
Reinforced base with fork passage for forklift
Base on skids
