**New Standard SS1 Sanitary Block**
Our sanitary blocks meet the urgent need for sanitary facilities in construction sites, warehouses, restaurants, campgrounds, and public spaces. They are designed for entities requiring rapid deployment of sanitary solutions on their premises: municipalities, businesses, and associations. The modular sanitary block ensures swift installation at a highly competitive price compared to conventional construction methods.

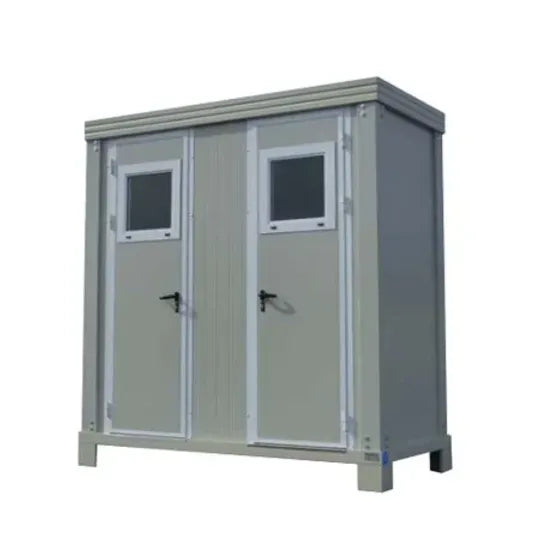

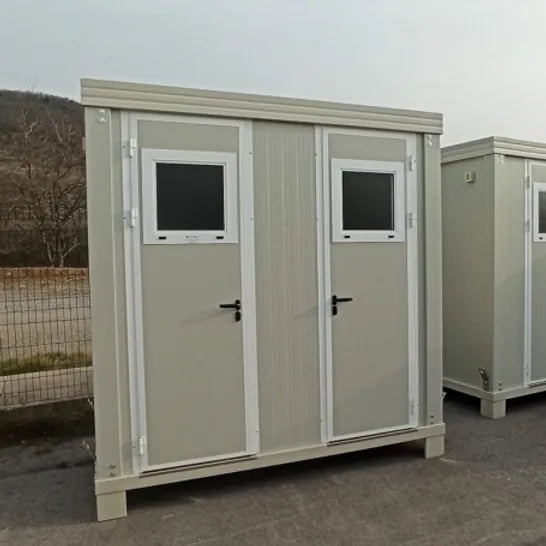

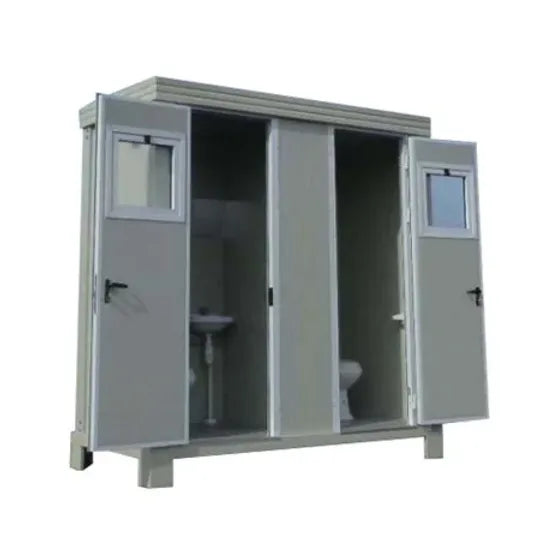

The SS1 sanitary block features dual doors, each leading to a WC cabin with washbasin, equipped with opening windows on the doors. This module is supported by four 16 cm legs at the base.
Delivery time for this stocked module is guaranteed within three weeks from the date of order. The module is not customizable but is also available in a configuration with WC and shower as the SD1 sanitary block.
Our standard series represents our baseline finish: standard structure and insulation. For enhanced thermal and acoustic insulation, options include our "Reinforced" or "Isoplus" series, albeit with longer lead times.
All our sanitary facilities are assembled in France.
### New SS1 Standard Sanitary Block Description
The SS1 sanitary block is constructed with a galvanized and light grey RAL 9002 lacquered steel frame.
The roof profile is made of galvanized steel, lacquered in light grey RAL 9002, with a thickness of 1.5 mm and a height of 154 mm, featuring 4 lifting points for crane handling.
The base profiles are made of galvanized steel, also lacquered in light grey RAL 9002, with a thickness of 1.5 mm and a height of 80 mm, supported by four 16 cm legs.
The roof consists of 30 mm thick rigid polyurethane foam sandwich panels, meeting Euroclass Cs3d0 standards. The roof covering is corrugated galvanized steel, designed for effective rainwater drainage at the rear.
Walls and partitions are made of 40 mm thick rigid polyurethane foam sandwich panels (light grey RAL 9002), also meeting Euroclass Cs3d0 standards.
The floor is constructed with 18 mm thick moisture-resistant chipboard panels, covered with PVC for durability and easy maintenance.

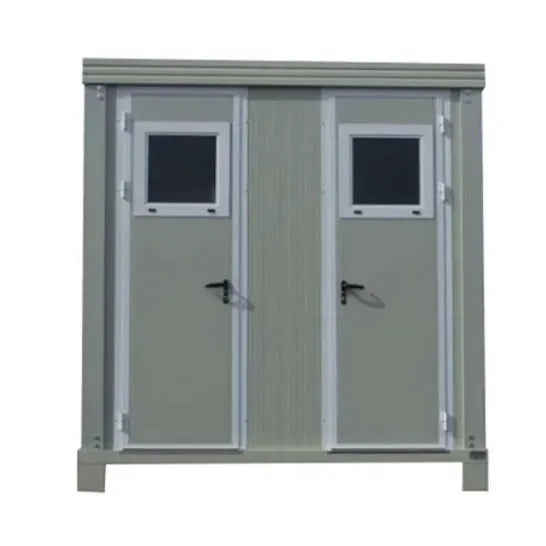

Windows and doors are made of white lacquered aluminum RAL 9010. The SS1 sanitary block features two full doors measuring 78 x 210 cm (64 cm passage width), each equipped with two 58 x 58 cm opening windows with molded single glazing.
### Connectable Sanitary Equipment

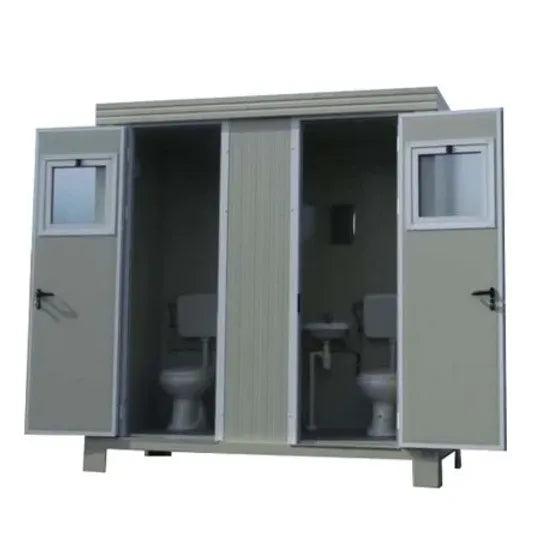

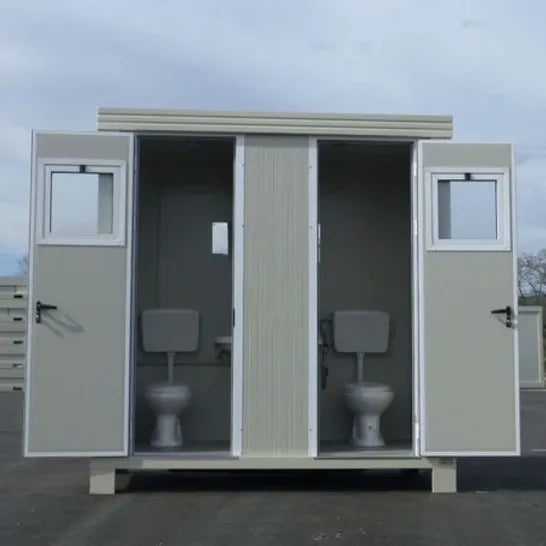

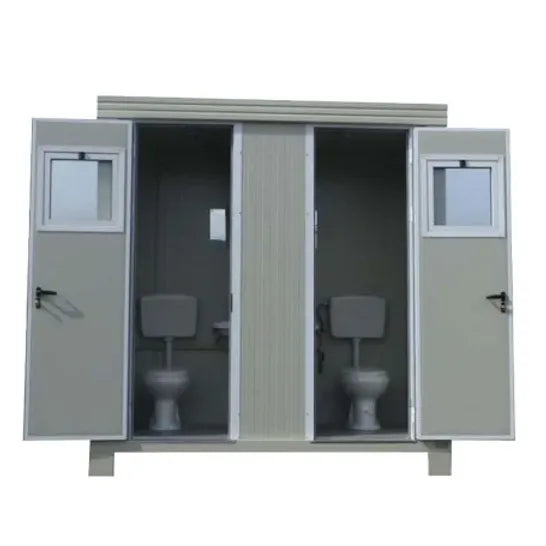

Each WC cabin includes an English-style ceramic toilet with PVC tank and toilet paper holder, and a 36 cm PVC washbasin with faucet and mirror.

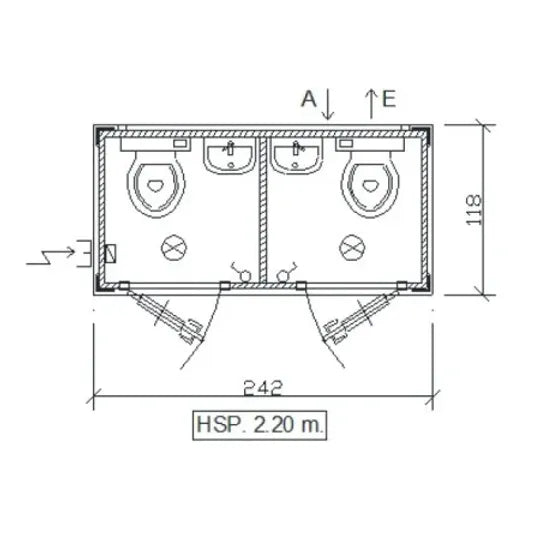

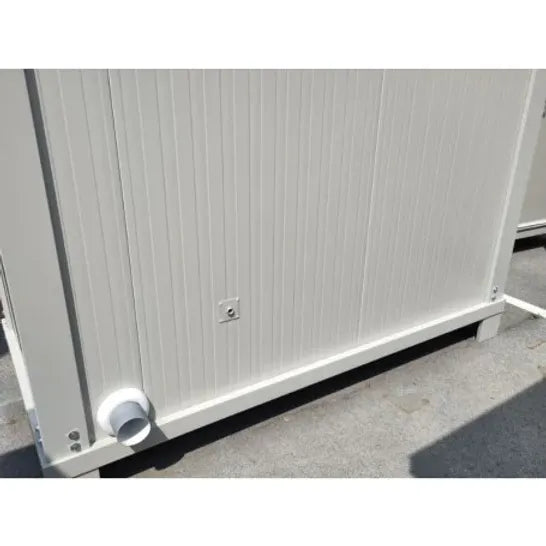

Water supply (A) and drainage (E) are integrated into the wall panels.
### 220 V Electrical Installation
The SS1 sanitary block includes two switches, two LED ceiling lights, an electrical panel with differential and circuit breakers (up to 6 KW), and an external connection box.
### Technical Specifications
**Dimensions**

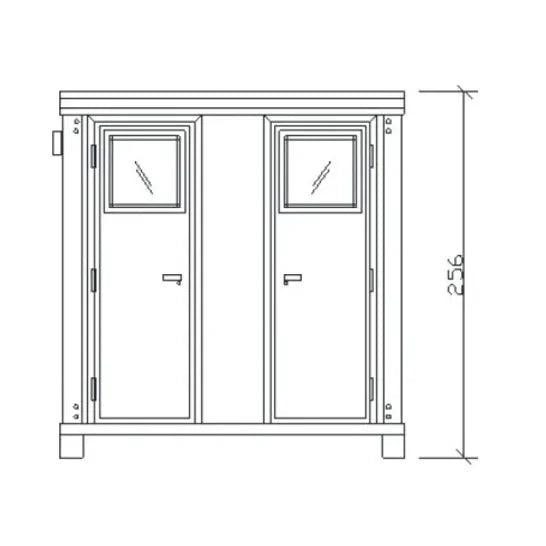

- External Height: 256 cm
- Internal Height: 220 cm
- Width: 242 cm
- Depth: 118 cm
**FRAME**
- Material: Galvanized and lacquered steel
- Color: Light grey RAL 9002
- Thickness: 1.5 mm
- Base: height 80 mm
- Roof: height 154 mm
- Handling: 4 lifting points on roof for hooks. Forklift usage facilitated by 4 legs raising the base, ensuring pipe safety and module balance (adjust fork spacing accordingly).
**JOINERY**
- Material: White lacquered aluminum RAL 9010
- Door(s): 2 full doors dimensions 78 x 210 cm (64 cm passage width)
- Window(s): 2 opening windows on doors, dimensions 58 x 58 cm, molded single glazing
**WALLS, PARTITIONS AND ROOF**
- Material: Sandwich panels
- Insulation: Rigid polyurethane foam
- Thickness Walls and Partitions: 40 mm
- Thickness Roof: 30 mm
- Roof Covering: Corrugated galvanized steel sheet waves
**WALL COLOR**
- Light grey RAL 9002
**FLOOR**
- Structure: Moisture-resistant chipboard panels
- Thickness: 18 mm
- Coating: PVC
**SANITARY INSTALLATION**
- 2 PVC washbasins dimensions 36 cm with cold water faucet and mirror
- 2 English-style ceramic toilets equipped with PVC tank and toilet paper holder
- Water supply and drainage integrated into wall panels (A) and (E)
**ELECTRICITY**
- Lighting: 2 switches + 2 LED ceiling lights 7.5 w
- Panel: 1 electrical panel including differential and circuit breakers
- Connection: 1 external connection box
### Possible Options
- Hot water at washbasin (30L water heater)
- Electric fan heater
- Double glazing
- 4 rainwater downpipes
- Heavy-duty PVC flooring instead of standard, PVC imitation parquet or tiled floor
- Smooth panels, food panels, fire-resistant panels or rock wool panels
- Electrical outlets
- 90m3/h air extractor with switch
- 16 mm wood-cement panel flooring
- Reinforced base (160 mm height) with fork passages (90 cm spacing) for safe forklift handling
